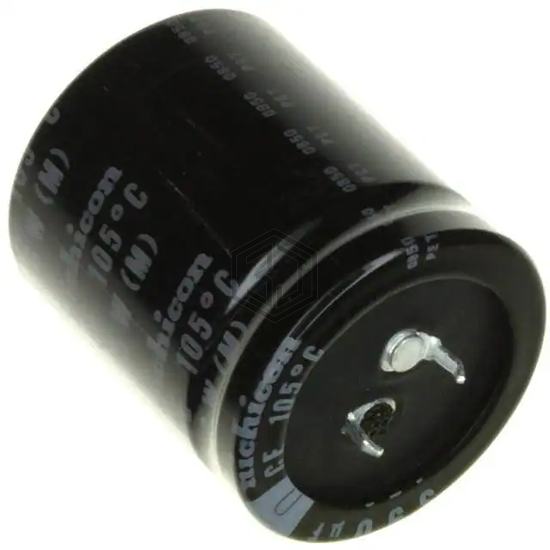

CAP ALUM 180UF 20% 450V SNAP
LGW2W181MELC25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 4,249
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.288 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450MXG180MEFCSN25X35 | Rubycon | CAP ALUM 180UF 20% 450V SNAP | 88% | View |
| 450VXH180MEFC22X40 | Rubycon | CAP ALUM 180UF 20% 450V SNAP | 88% | View |
| 400HXW180MEFR18X35 | Rubycon | CAP ALUM 180UF 20% 400V RADIAL | 81% | View |
| 381LX191M500A032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 190UF 20% 500V SNAP | 75% | View |
| LGR2E181MELA25 | Nichicon | CAP ALUM 180UF 20% 250V SNAP | 62% | View |
| 30D197G012DD2 | Vishay Sprague | CAP ALUM 190UF 12V AXIAL | 51% | View |
Submit your RFQ for LGW2W181MELC25 and get a quote within 24 hours.
