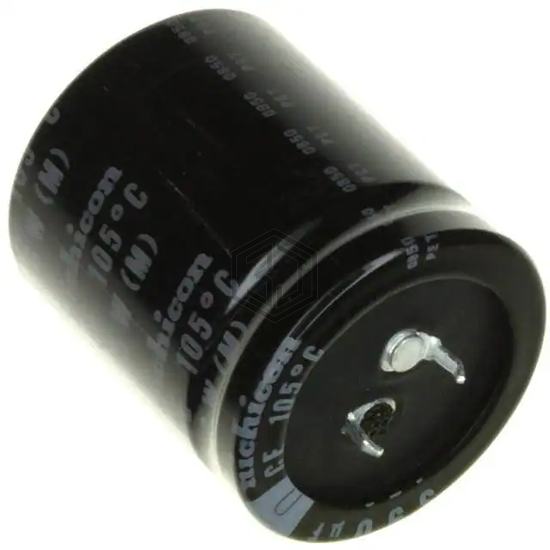

CAP ALUM 680UF 20% 400V SNAP
LGW2G681MELC50 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 7,700
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.21 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.5903 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225957681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 450V SNAP | 95% | View |
| EKMM451VSN681MA60U | United Chemi-Con | CAP ALUM 680UF 20% 450V SNAP | 92% | View |
| ELXM351VSN681MA50S | United Chemi-Con | CAP ALUM 680UF 20% 350V SNAP | 81% | View |
| 381LQ681M250J452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 250V SNAP | 60% | View |
| 16RX30680M10X16 | Rubycon | CAP ALUM 680UF 20% 16V RADIAL | 56% | View |
| 200HXG680MEFCSN22X45 | Rubycon | CAP ALUM 680UF 20% 200V SNAP | 56% | View |
Submit your RFQ for LGW2G681MELC50 and get a quote within 24 hours.
