CAP ALUM 330UF 20% 400V SNAP

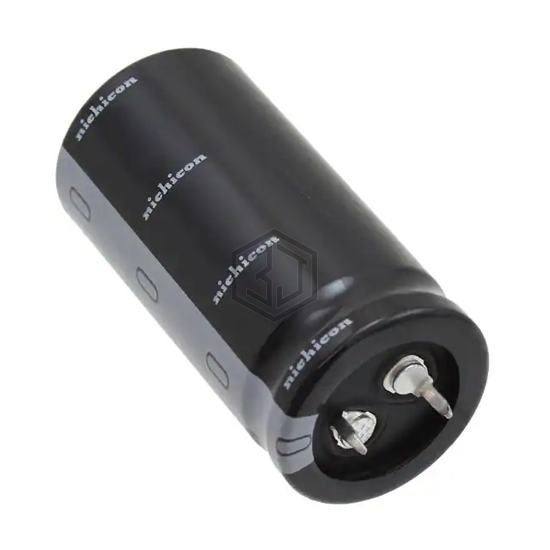

LGW2G331MELA50 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 1,289
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.12 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.0316 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 420MXK330MEFC22X50 | Rubycon | CAP ALUM 330UF 20% 420V SNAP | 91% | View |
| B43644B9337M000 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 400V SNAP | 89% | View |
| 450VXS330MEFC35X35 | Rubycon | CAP ALUM 330UF 20% 450V SNAP | 88% | View |
| LGL2G331MELA35 | Nichicon | CAP ALUM 330UF 20% 400V SNAP | 78% | View |
| MAL212049331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 100V T/H | 66% | View |
| 180MXC330MEFC20X30 | Rubycon | CAP ALUM 330UF 20% 180V SNAP | 53% | View |
Submit your RFQ for LGW2G331MELA50 and get a quote within 24 hours.
