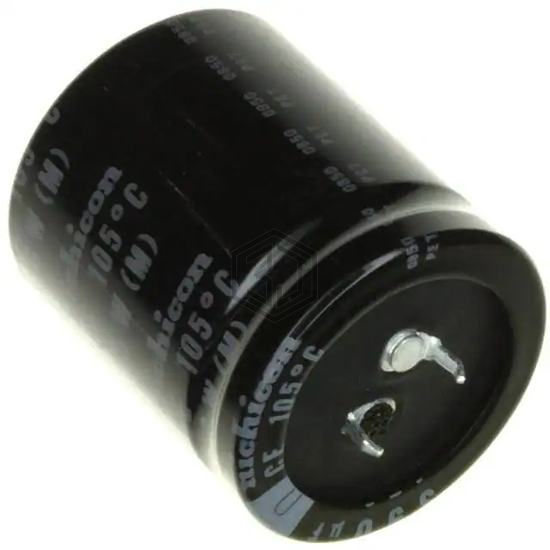

CAP ALUM 270UF 20% 400V SNAP
LGW2G271MELC25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 2,450
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.12 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.0316 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMT451VSN271MR40S | United Chemi-Con | CAP ALUM 270UF 20% 450V SNAP | 91% | View |
| ALC80C271EB450 | KEMET | CAP ALUM 270UF 20% 450V SNAP | 83% | View |
| B43544A6277M000 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 500V SNAP | 83% | View |
| LQS2G271MELB30 | Nichicon | CAP ALUM 270UF 20% 400V SNAP | 71% | View |
| 381LQ271M450K042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 270UF 20% 450V SNAP | 68% | View |
| LGN2V271MELB25 | Nichicon | CAP ALUM 270UF 20% 350V SNAP | 65% | View |
Submit your RFQ for LGW2G271MELC25 and get a quote within 24 hours.
