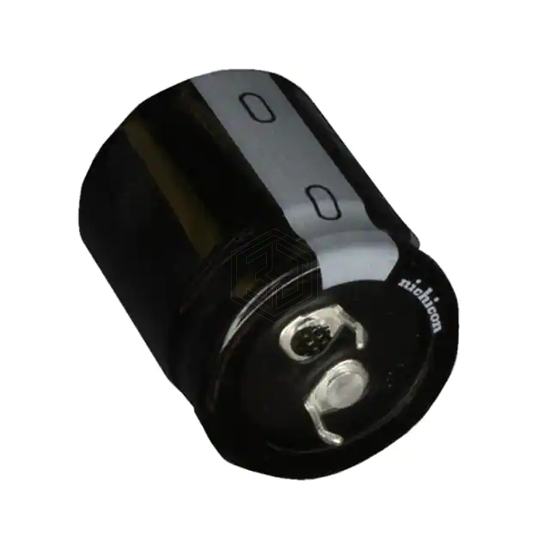

CAP ALUM 220UF 20% 400V SNAP
LGW2G221MELA35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 4,704
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.65 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.3595 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225937221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 450V SNAP | 95% | View |
| 420HXG220MEFC30X30 | Rubycon | CAP ALUM 220UF 20% 420V SNAP | 94% | View |
| 450HXC220MEFCSN25X50 | Rubycon | CAP ALUM 220UF 20% 450V SNAP | 90% | View |
| EKXJ401ELL221MM50S | United Chemi-Con | CAP ALUM 220UF 20% 400V RADIAL | 89% | View |
| B43504A9227M007 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 400V SNAP | 87% | View |
| 475MXH220MEFCSN30X35 | Rubycon | CAP ALUM 220UF 20% 475V SNAP | 85% | View |
Submit your RFQ for LGW2G221MELA35 and get a quote within 24 hours.
