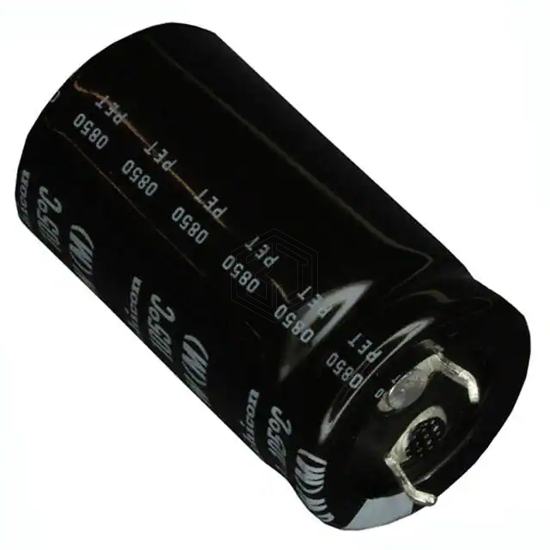

CAP ALUM 390UF 20% 250V SNAP
LGW2E391MELZ35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 8,996
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.95 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.925 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 250MXC390MEFC30X25 | Rubycon | CAP ALUM 390UF 20% 250V SNAP | 87% | View |
| 250MXC390MEFC20X45 | Rubycon | CAP ALUM 390UF 20% 250V SNAP | 82% | View |
| 381LQ391M250J032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 390UF 20% 250V SNAP | 79% | View |
| 381LX391M200H022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 390UF 20% 200V SNAP | 72% | View |
| 200MXC390MEFC20X35 | Rubycon | CAP ALUM 390UF 20% 200V SNAP | 72% | View |
| 160TXW390MEFR16X35 | Rubycon | CAP ALUM 390UF 20% 160V RADIAL | 67% | View |
Submit your RFQ for LGW2E391MELZ35 and get a quote within 24 hours.
