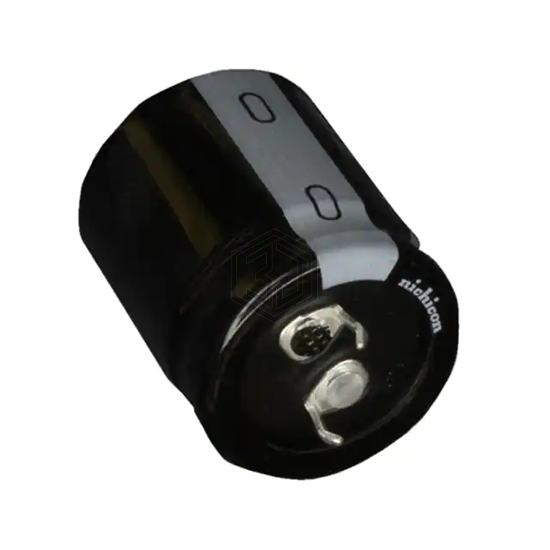

CAP ALUM 470UF 20% 200V SNAP
LGW2D471MELA25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 2,228
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.17 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.255 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU2Z471MELA | Nichicon | CAP ALUM 470UF 20% 180V SNAP | 79% | View |
| B43254G2477M | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 250V SNAP | 77% | View |
| MAL219366471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 400V SNAP | 77% | View |
| MAL225957471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 450V SNAP | 75% | View |
| B43640B5477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 450V SNAP | 67% | View |
| B43545A5477M002 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 450V SNAP | 64% | View |
Submit your RFQ for LGW2D471MELA25 and get a quote within 24 hours.
