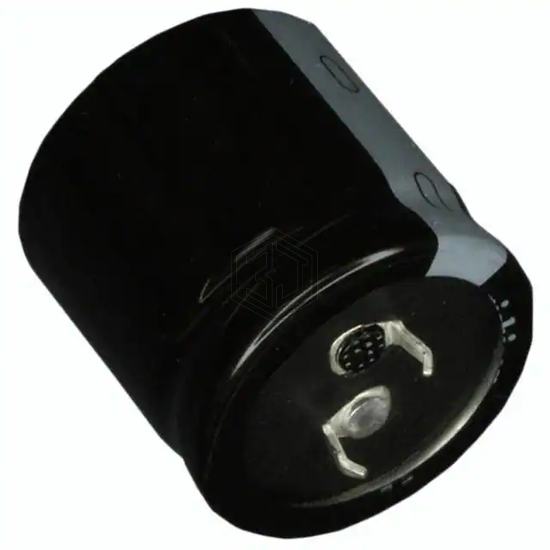

CAP ALUM 1800UF 20% 200V SNAP
LGW2D182MELB50 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 7,777
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.22 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.83 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504E2188M000 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 200V SNAP | 91% | View |
| LP182M160E9P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 20% 160V SNAP | 86% | View |
| B43504A2188M000 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 250V SNAP | 83% | View |
| LAR2D182MELC40 | Nichicon | CAP ALUM 1800UF 20% 200V SNAP | 75% | View |
| 381LQ182M200K452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 20% 200V SNAP | 73% | View |
| 160MXG1800MEFCSN25X60 | Rubycon | CAP ALUM 1800UF 20% 160V SNAP | 73% | View |
Submit your RFQ for LGW2D182MELB50 and get a quote within 24 hours.
