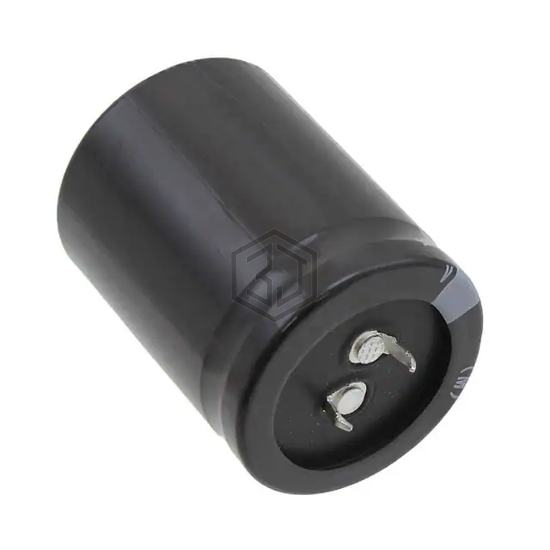

CAP ALUM 470UF 20% 420V SNAP
LGUW6471MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 1,443
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.717 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGN2W471MELC45 | Nichicon | CAP ALUM 470UF 20% 450V SNAP | 95% | View |
| EKMH451VNN471MA50M | United Chemi-Con | CAP ALUM 470UF 20% 450V SNAP | 93% | View |
| E91F3J1VSN471MA50U | United Chemi-Con | CAP ALUM 470UF 20% 385V SNAP | 82% | View |
| B43504C2477M80 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 250V SNAP | 71% | View |
| B43505G2477M007 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 200V SNAP | 68% | View |
| B43504E2477M002 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 200V SNAP | 62% | View |
