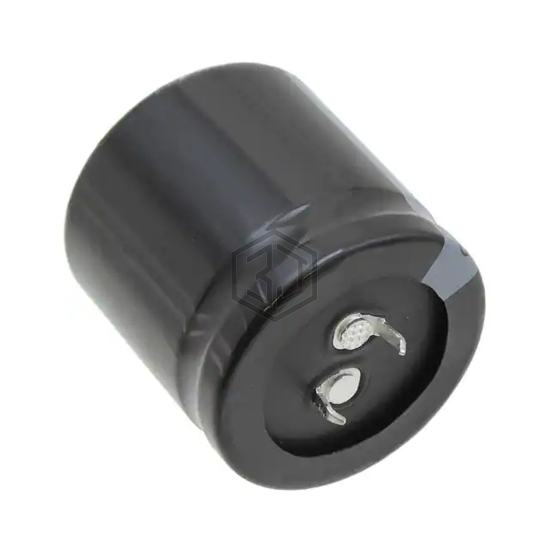

CAP ALUM 330UF 20% 420V SNAP
LGUW6331MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 5,614
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.45 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.0735 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKX2W331MESC40 | Nichicon | CAP ALUM 330UF 20% 450V SNAP | 96% | View |
| ELXM351VSN331MQ45S | United Chemi-Con | CAP ALUM 330UF 20% 350V SNAP | 93% | View |
| EKMS3B1VSN331MQ30S | United Chemi-Con | CAP ALUM 330UF 20% 315V SNAP | 89% | View |
| EKYB101ELL331ML25S | United Chemi-Con | CAP ALUM 330UF 20% 100V RADIAL | 71% | View |
| ELXM181VSN331MP30S | United Chemi-Con | CAP ALUM 330UF 20% 180V SNAP | 69% | View |
| EEU-TA1H331S | Panasonic Electronic Components | CAP ALUM 330UF 20% 50V RADIAL | 60% | View |
Submit your RFQ for LGUW6331MELC and get a quote within 24 hours.
