CAP ALUM 270UF 20% 420V SNAP

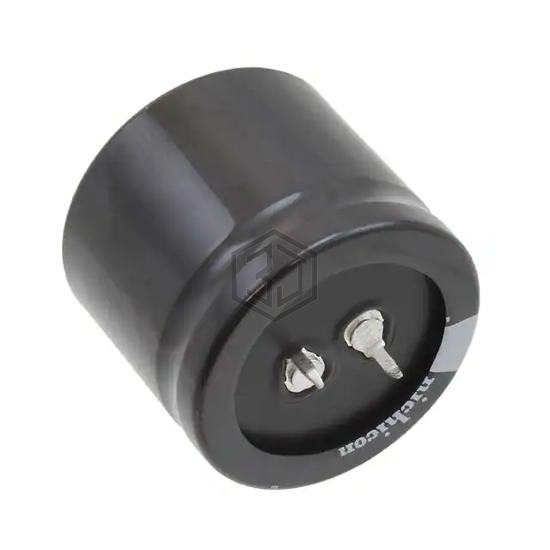

LGUW6271MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 7,744
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.22 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.7446 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU2G271MELA | Nichicon | CAP ALUM 270UF 20% 400V SNAP | 99% | View |
| EKMS421VSN271MA25S | United Chemi-Con | CAP ALUM 270UF 20% 420V SNAP | 94% | View |
| MAL209437271E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 270UF 20% 450V SNAP | 94% | View |
| 381LX271M350K022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 270UF 20% 350V SNAP | 88% | View |
| 250TXW270MEFR16X40 | Rubycon | CAP ALUM 270UF 20% 250V RAD TH | 83% | View |
| EEU-FR1V271 | Panasonic Electronic Components | CAP ALUM 270UF 20% 35V RADIAL | 65% | View |
