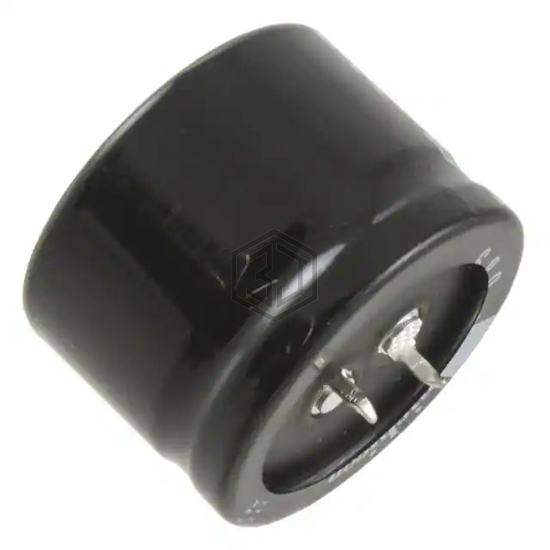

CAP ALUM 220UF 20% 420V SNAP
LGUW6221MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 7,200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.573 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH451VNN221MQ45U | United Chemi-Con | CAP ALUM 220UF 20% 450V SNAP | 96% | View |
| 400VXH220MEFC30X25 | Rubycon | CAP ALUM 220UF 20% 400V SNAP | 93% | View |
| MAL219326221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 400V SNAP | 84% | View |
| PK2W221MND2535E | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 82% | View |
| 180VXR220MEFC22X25 | Rubycon | CAP ALUM 220UF 20% 180V SNAP | 76% | View |
| 63TXW220MEFC8X30 | Rubycon | CAP ALUM 220UF 20% 63V RADIAL | 71% | View |
