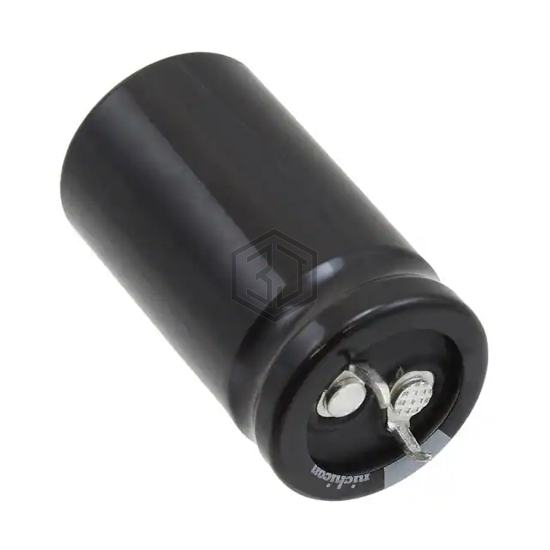

CAP ALUM 150UF 20% 420V SNAP
LGUW6151MELZ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 147
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 880 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2584 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 420KXW150MEFC18X35 | Rubycon | CAP ALUM 150UF 20% 420V RADIAL | 100% | View |
| LKX2W151MESA25 | Nichicon | CAP ALUM 150UF 20% 450V SNAP | 96% | View |
| B43504B9157M60 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 400V SNAP | 96% | View |
| EKXG451ELL151MM45S | United Chemi-Con | CAP ALUM 150UF 20% 450V RADIAL | 96% | View |
| 385VXS150MEFC22X35 | Rubycon | CAP ALUM 150UF 20% 385V SNAP | 86% | View |
| MAL225967151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 450V SNAP | 84% | View |
