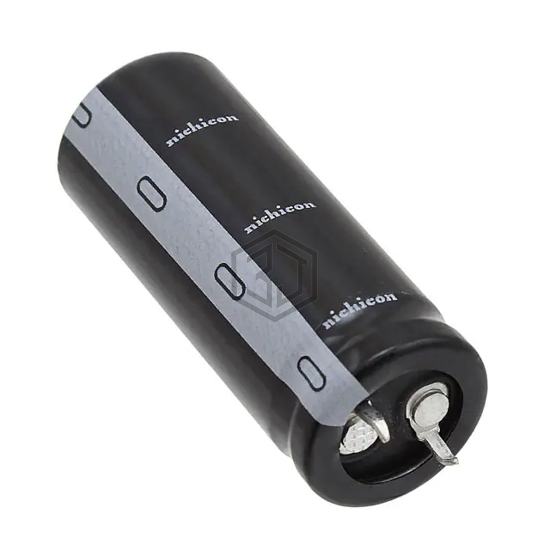

CAP ALUM 150UF 20% 420V SNAP
LGUW6151MELY is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 2,046
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 880 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2584 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215967151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 450V SNAP | 96% | View |
| EKMH401VNN151MQ35S | United Chemi-Con | CAP ALUM 150UF 20% 400V SNAP | 96% | View |
| 400KXF150MEFC30X20 | Rubycon | CAP ALUM 150UF 20% 400V SNAP | 93% | View |
| LAKW6151MELC25 | Nichicon | CAP ALUM 150UF 20% 420V SNAP | 91% | View |
| 672D157H015CG5C | Vishay Sprague | CAP ALUM 150UF 15V RADIAL | 56% | View |
| 35ZLH150MEFCTA8X11.5 | Rubycon | CAP ALUM 150UF 20% 35V RADIAL | 56% | View |
Submit your RFQ for LGUW6151MELY and get a quote within 24 hours.
