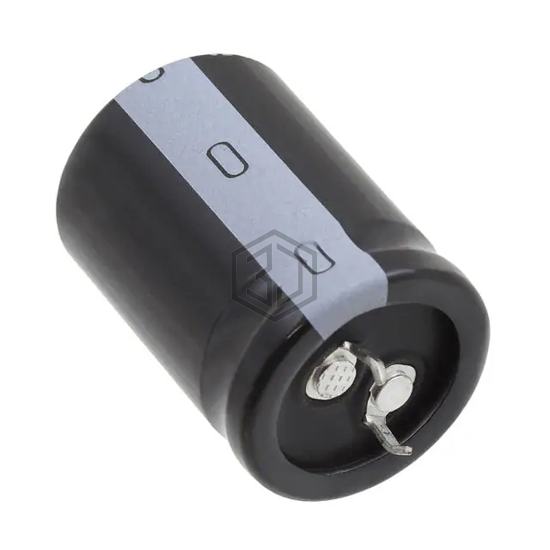

CAP ALUM 150UF 20% 420V SNAP
LGUW6151MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 3,474
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 880 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2584 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMR451VSN151MQ25S | United Chemi-Con | CAP ALUM 150UF 20% 450V SNAP | 97% | View |
| B43504B9157M80 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 400V SNAP | 96% | View |
| B43504C5157M82 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 450V SNAP | 96% | View |
| 385VXS150MEFC25X25 | Rubycon | CAP ALUM 150UF 20% 385V SNAP | 90% | View |
| MW2S151MNN1835 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 89% | View |
| MAL225957151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 450V SNAP | 84% | View |
Submit your RFQ for LGUW6151MELA and get a quote within 24 hours.
