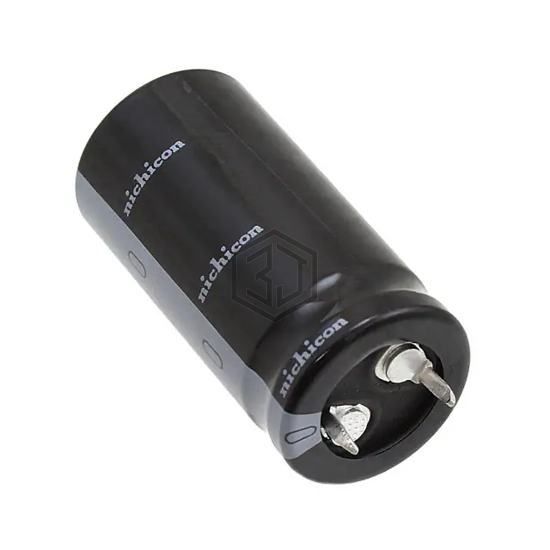

CAP ALUM 120UF 20% 420V SNAP
LGUW6121MELY is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 4,457
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 750 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.0725 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400HXW120MEFR16X30 | Rubycon | CAP ALUM 120UF 20% 400V RADIAL | 90% | View |
| EKXL421ELL121MM30S | United Chemi-Con | CAP ALUM 120UF 20% 420V RAD TH | 86% | View |
| 500MXH120EFCSN22X40 | Rubycon | CAP ALUM 120UF 20% 500V SNAP | 80% | View |
| 600D127F100DX4 | Vishay Sprague | CAP ALUM 120UF 100V AXIAL | 70% | View |
| 860080674010 | Würth Elektronik | CAP ALUM 120UF 20% 50V RADIAL | 61% | View |
| 510DX127M063CG2D | Vishay Sprague | CAP ALUM 120UF 20% 63V RADIAL | 56% | View |
Submit your RFQ for LGUW6121MELY and get a quote within 24 hours.
