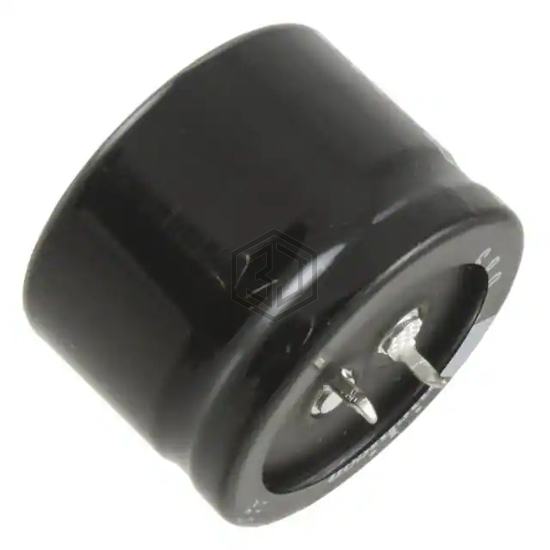

CAP ALUM 820UF 20% 180V SNAP
LGU2Z821MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 820UF 20% 180V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 180 V, package / case Radial, Can - Snap-In.
In Stock: 6,181
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 180 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.04 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.06 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508A2827M67 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 200V SNAP | 94% | View |
| 381LX821M200H452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 820UF 20% 200V SNAP | 93% | View |
| B43642E2827M000 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 250V SNAP | 84% | View |
| B43508F2827M82 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 250V SNAP | 83% | View |
| 80ZLJ820M18X31.5 | Rubycon | CAP ALUM 820UF 20% 80V RADIAL | 73% | View |
| 80ZLJ820M16X40 | Rubycon | CAP ALUM 820UF 20% 80V RADIAL | 70% | View |
Submit your RFQ for LGU2Z821MELC and get a quote within 24 hours.
