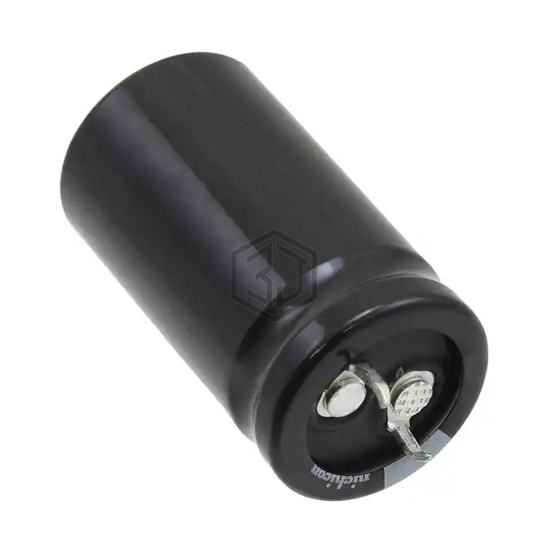

CAP ALUM 560UF 20% 180V SNAP
LGU2Z561MELZ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 180V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 180 V, package / case Radial, Can - Snap-In.
In Stock: 215
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 180 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.67 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.505 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EPAG201ELL561MM45S | United Chemi-Con | CAP ALUM 560UF 20% 200V RADIAL | 94% | View |
| 200MXG560MEFCSN20X40 | Rubycon | CAP ALUM 560UF 20% 200V SNAP | 89% | View |
| B43254F2567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 88% | View |
| B43504A2567M67 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 84% | View |
| B43547F2567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 77% | View |
| 381LX561M100H012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 100V SNAP | 56% | View |
Submit your RFQ for LGU2Z561MELZ and get a quote within 24 hours.
