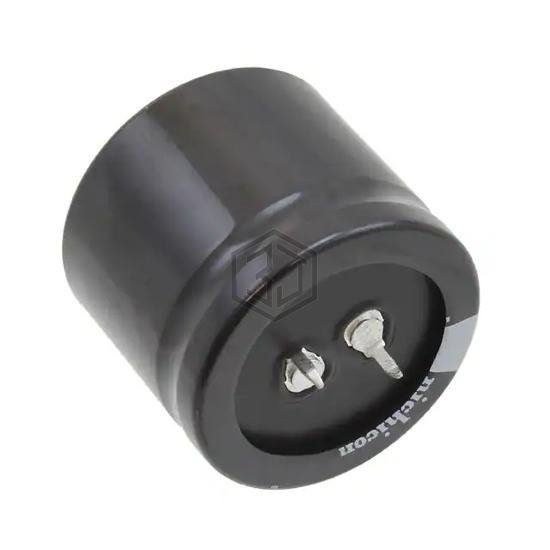

CAP ALUM 1200UF 20% 180V SNAP
LGU2Z122MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 180V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 180 V, package / case Radial, Can - Snap-In.
In Stock: 2,185
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 180 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.825 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGN2E122MELB45 | Nichicon | CAP ALUM 1200UF 20% 250V SNAP | 85% | View |
| B43508F2128M7 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 250V SNAP | 80% | View |
| MAL225923122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 250V SNAP | 77% | View |
| 860040781020 | Würth Elektronik | CAP ALUM 1200UF 20% 63V RADIAL | 72% | View |
| 381LX122M100H042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1200UF 20% 100V SNAP | 65% | View |
| 35YXH1200MEFC12.5X30 | Rubycon | CAP ALUM 1200UF 20% 35V RADIAL | 59% | View |
Submit your RFQ for LGU2Z122MELC and get a quote within 24 hours.
