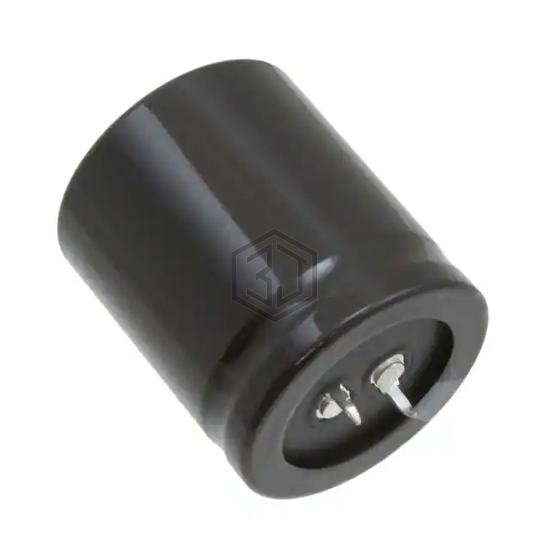

CAP ALUM 390UF 20% 450V SNAP
LGU2W391MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 4,706
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.145 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGX2W391MELC40 | Nichicon | CAP ALUM 390UF 20% 450V SNAP | 93% | View |
| SLP391M350E7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 390UF 20% 350V SNAP | 91% | View |
| B43504A9397M60 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 400V SNAP | 91% | View |
| B43515B0397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 420V SNAP | 89% | View |
| ELXS251VSN391MP35S | United Chemi-Con | CAP ALUM 390UF 20% 250V SNAP | 81% | View |
| MAL209443391E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 390UF 20% 250V SNAP | 75% | View |
Submit your RFQ for LGU2W391MELC and get a quote within 24 hours.
