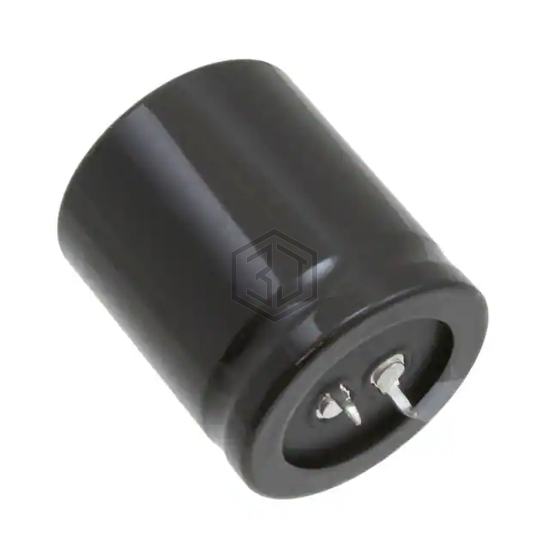

CAP ALUM 330UF 20% 450V SNAP
LGU2W331MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 7,064
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.45 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.0735 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH401VNN331MA35S | United Chemi-Con | CAP ALUM 330UF 20% 400V SNAP | 93% | View |
| B43505C9337M87 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 400V SNAP | 90% | View |
| B43508C9337M2 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 400V SNAP | 88% | View |
| B43508C9337M7 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 400V SNAP | 88% | View |
| SLP331M315E3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 315V SNAP | 86% | View |
| LGW2E331MELZ30 | Nichicon | CAP ALUM 330UF 20% 250V SNAP | 71% | View |
Submit your RFQ for LGU2W331MELC and get a quote within 24 hours.
