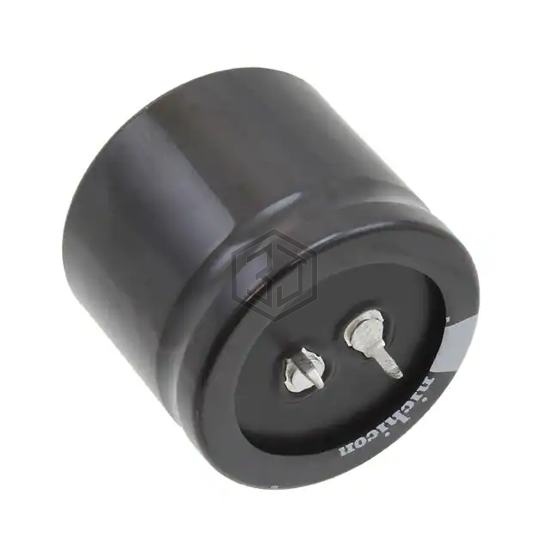

CAP ALUM 220UF 20% 450V SNAP
LGU2W221MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 8,515
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.12 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.6016 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504B5227M80 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 450V SNAP | 98% | View |
| B43505A5227M87 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 450V SNAP | 95% | View |
| LQS2G221MELA35 | Nichicon | CAP ALUM 220UF 20% 400V SNAP | 93% | View |
| HU2G221MCYS3WPEC | AIC tech Inc. | CAP ALUM 220UF 20% 400V SNAP | 92% | View |
| 400SXC220MEFCSN30X35 | Rubycon | CAP ALUM 220UF 20% 400V SNAP | 91% | View |
| 400MXK220MEFCSN22X35 | Rubycon | CAP ALUM 220UF 20% 400V SNAP | 87% | View |
Submit your RFQ for LGU2W221MELC and get a quote within 24 hours.
