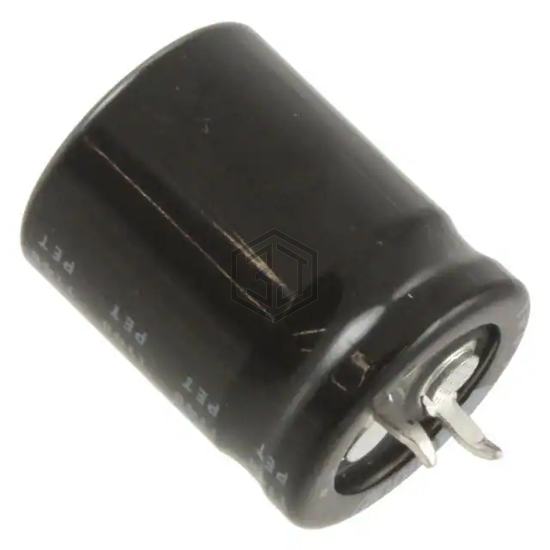

CAP ALUM 180UF 20% 220V SNAP
LGU2P181MELY is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 220V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 220 V, package / case Radial, Can - Snap-In.
In Stock: 81
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 220 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 900 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.35 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 160TXW180MEFR10X50 | Rubycon | CAP ALUM 180UF 20% 160V RADIAL | 83% | View |
| UCY2C181MHD6 | Nichicon | CAP ALUM 180UF 20% 160V RADIAL | 76% | View |
| EEU-FR1J181 | Panasonic Electronic Components | CAP ALUM 180UF 20% 63V RADIAL | 76% | View |
| B43508C5187M82 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 450V SNAP | 68% | View |
| 100ZL180MEFC12.5X25 | Rubycon | CAP ALUM 180UF 20% 100V RADIAL | 66% | View |
| EEU-FC1J181S | Panasonic Electronic Components | CAP ALUM 180UF 20% 63V RADIAL | 65% | View |
Submit your RFQ for LGU2P181MELY and get a quote within 24 hours.
