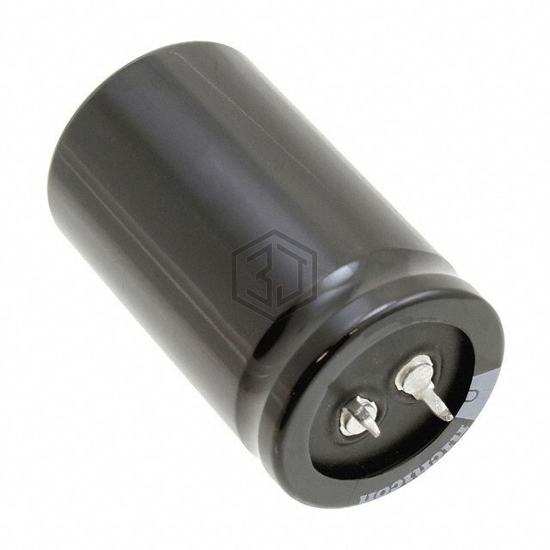

CAP ALUM 1200UF 20% 220V SNAP
LGU2P122MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 220V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 220 V, package / case Radial, Can - Snap-In.
In Stock: 127
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 220 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.9 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43642A2128M000 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 200V SNAP | 96% | View |
| B43254A2128M | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 200V SNAP | 96% | View |
| 220MXC1200MEFCSN30X45 | Rubycon | CAP ALUM 1200UF 20% 220V SNAP | 95% | View |
| B43504C2128M82 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 250V SNAP | 90% | View |
| EEU-FM1V122L | Panasonic Electronic Components | CAP ALUM 1200UF 20% 35V RADIAL | 75% | View |
| 63ZLJ1200M18X20 | Rubycon | CAP ALUM 1200UF 20% 63V RADIAL | 64% | View |
