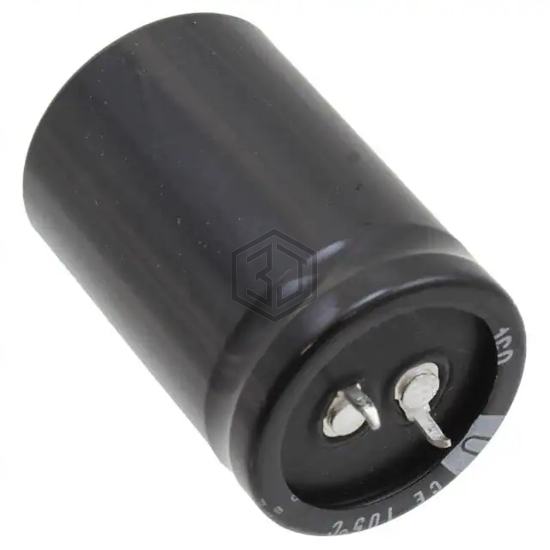

CAP ALUM 390UF 20% 400V SNAP
LGU2G391MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 2,620
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.288 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMW401VSN391MQ40S | United Chemi-Con | CAP ALUM 390UF 20% 400V SNAP | 98% | View |
| LGN2W391MELC40 | Nichicon | CAP ALUM 390UF 20% 450V SNAP | 96% | View |
| EKMS421VSN391MA35S | United Chemi-Con | CAP ALUM 390UF 20% 420V SNAP | 95% | View |
| LGL2G391MELB30 | Nichicon | CAP ALUM 390UF 20% 400V SNAP | 87% | View |
| EKMQ351VSN391MQ45S | United Chemi-Con | CAP ALUM 390UF 20% 350V SNAP | 86% | View |
| LGU2D391MELA | Nichicon | CAP ALUM 390UF 20% 200V SNAP | 72% | View |
