CAP ALUM 330UF 20% 400V SNAP

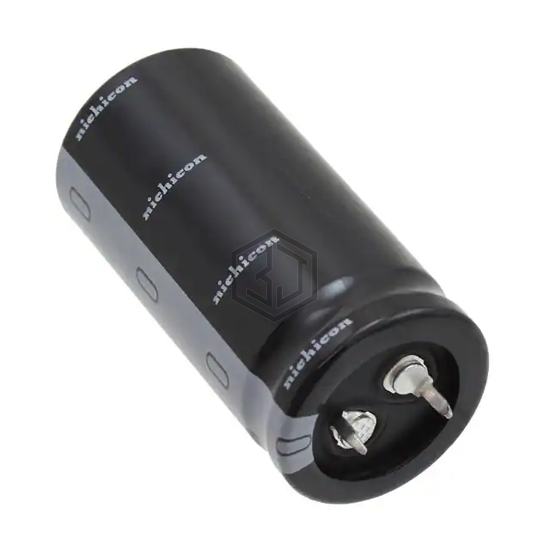

LGU2G331MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 4,308
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.44 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.0592 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 337LMH250M2BD | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 250V SNAP | 78% | View |
| MAL225959331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 500V SNAP | 74% | View |
| B43508A2337M000 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 200V SNAP | 61% | View |
| RZW331M1HBK-1025S | SURGE | CAP ALUM 330UF 20% 50V RADIAL | 60% | View |
| 25ZLK330M8X16 | Rubycon | CAP ALUM 330UF 20% 25V RADIAL | 58% | View |
| EEU-FR1V331UB | Panasonic Electronic Components | CAP ALUM 330UF 20% 35V RADIAL TH | 58% | View |
Submit your RFQ for LGU2G331MELA and get a quote within 24 hours.
