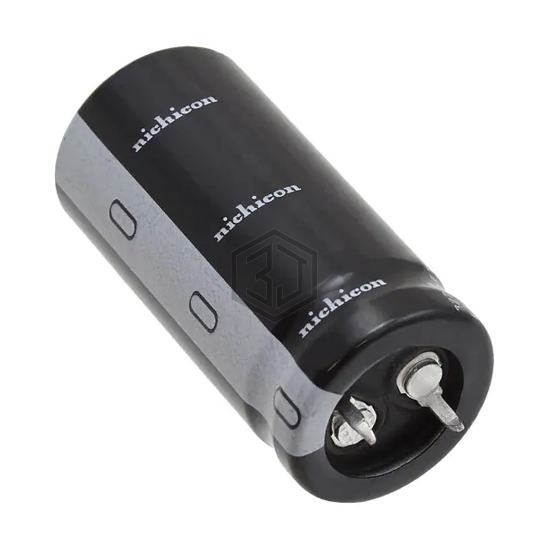

CAP ALUM 180UF 20% 400V SNAP
LGU2G181MELZ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 3,074
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 980 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.4014 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGX2G181MELA30 | Nichicon | CAP ALUM 180UF 20% 400V SNAP | 100% | View |
| B43508A5187M67 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 450V SNAP | 95% | View |
| LGZ2W181MELB45 | Nichicon | CAP ALUM 180UF 20% 450V SNAP | 91% | View |
| EKMQ451VSN181MP45S | United Chemi-Con | CAP ALUM 180UF 20% 450V SNAP | 91% | View |
| 600D187G015DE5 | Vishay Sprague | CAP ALUM 180UF 15V AXIAL | 56% | View |
| EKYC500ELL181MJC5S | United Chemi-Con | CAP ALUM 180UF 20% 50V RADIAL | 55% | View |
Submit your RFQ for LGU2G181MELZ and get a quote within 24 hours.
