CAP ALUM 100UF 20% 400V SNAP

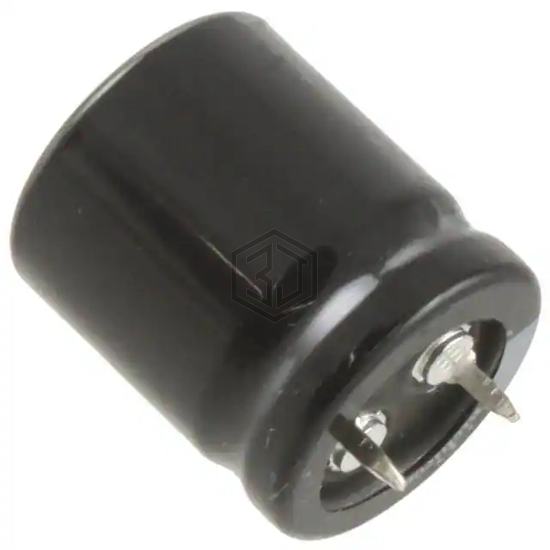

LGU2G101MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 207
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 700 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.001 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400KXW100MEFC18X25 | Rubycon | CAP ALUM 100UF 20% 400V RADIAL | 100% | View |
| EKWA421ELL101MK50S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 97% | View |
| B43508A9107M002 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 400V SNAP | 95% | View |
| 450KXW100MEFC18X30 | Rubycon | CAP ALUM 100UF 20% 450V RADIAL | 92% | View |
| 420VXS100MEFC22X30 | Rubycon | CAP ALUM 100UF 20% 420V SNAP | 88% | View |
| EEU-FM1H101BJ | Panasonic Electronic Components | CAP ALUM 100UF 20% 50V RADIAL | 72% | View |
