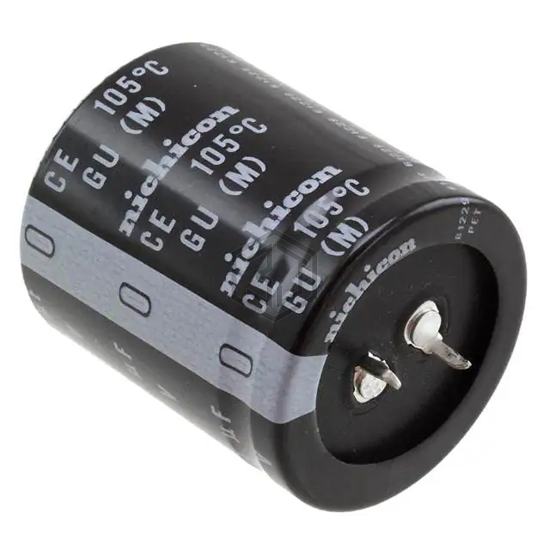

CAP ALUM 680UF 20% 315V SNAP
LGU2F681MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 8,830
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.17 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.1031 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMS401VSN681MA45S | United Chemi-Con | CAP ALUM 680UF 20% 400V SNAP | 88% | View |
| 250VXH680MEFC22X50 | Rubycon | CAP ALUM 680UF 20% 250V SNAP | 86% | View |
| 220MXC680MEFC25X40 | Rubycon | CAP ALUM 680UF 20% 220V SNAP | 83% | View |
| MAL225972681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 200V SNAP | 81% | View |
| B43544A5687M000 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 450V SNAP | 77% | View |
| B43504E2687M87 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 200V SNAP | 77% | View |
Submit your RFQ for LGU2F681MELC and get a quote within 24 hours.
