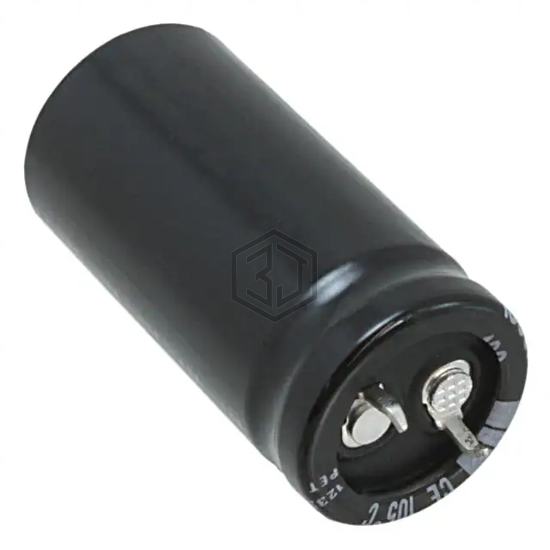

CAP ALUM 270UF 20% 315V SNAP
LGU2F271MELZ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 4,897
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.16 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.6588 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMR401VSN271MR25S | United Chemi-Con | CAP ALUM 270UF 20% 400V SNAP | 93% | View |
| 200TXW270MEFR16X30 | Rubycon | CAP ALUM 270UF 20% 200V RAD TH | 86% | View |
| ELHS451VSN271MA25S | United Chemi-Con | CAP ALUM 270UF 20% 450V SNAP | 86% | View |
| 277LMX400MWBG | Cornell Dubilier / Illinois Capacitor | CAP ALUM 270UF 20% 400V SNAP | 85% | View |
| ELXM451VSN271MA40S | United Chemi-Con | CAP ALUM 270UF 20% 450V SNAP | 80% | View |
| 35ZL270MEFCTA8X20 | Rubycon | CAP ALUM 270UF 20% 35V RADIAL | 57% | View |
