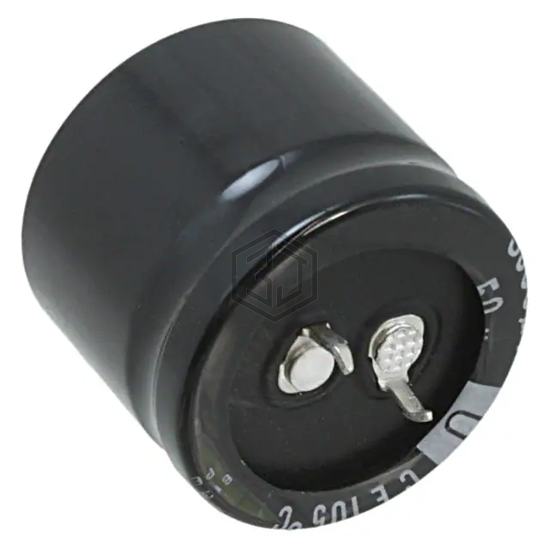

CAP ALUM 220UF 20% 315V SNAP
LGU2F221MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 4,376
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.04 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.4872 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43642A9227M000 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 400V SNAP | 89% | View |
| 400HXW220MEFR16X50 | Rubycon | CAP ALUM 220UF 20% 400V RADIAL | 79% | View |
| 420VXH220MEFC22X45 | Rubycon | CAP ALUM 220UF 20% 420V SNAP | 77% | View |
| UCS2D221MNY9 | Nichicon | CAP ALUM 220UF 20% 200V RADIAL | 71% | View |
| EKZE630EC3221MJ25S | United Chemi-Con | CAP ALUM 220UF 20% 63V RADIAL | 66% | View |
| 50ZL220MEFC10X16 | Rubycon | CAP ALUM 220UF 20% 50V RADIAL | 58% | View |
Submit your RFQ for LGU2F221MELB and get a quote within 24 hours.
