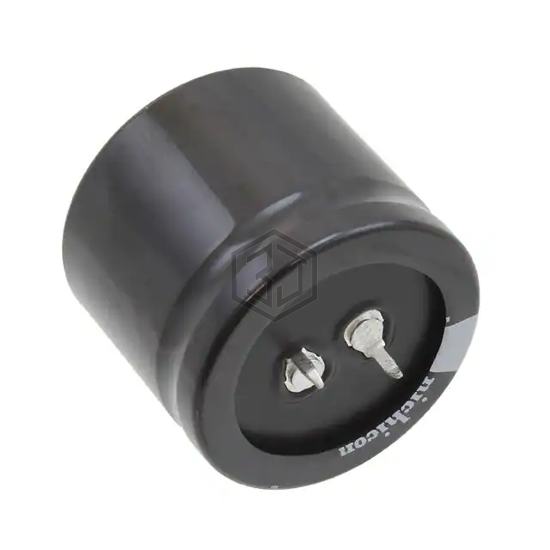

CAP ALUM 680UF 20% 250V SNAP
LGU2E681MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 9,970
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2 A @ 120 Hz |
| Ripple Current @ High Frequency | 3 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504D2687M67 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 250V SNAP | 99% | View |
| 381LX681M250K452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 250V SNAP | 91% | View |
| B43642B9687M007 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 400V SNAP | 72% | View |
| B43508A5687M60 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 450V SNAP | 70% | View |
| EEU-FC1H681L | Panasonic Electronic Components | CAP ALUM 680UF 20% 50V RADIAL | 67% | View |
| EKMG250ELL681MJ20S | United Chemi-Con | CAP ALUM 680UF 20% 25V RADIAL | 56% | View |
