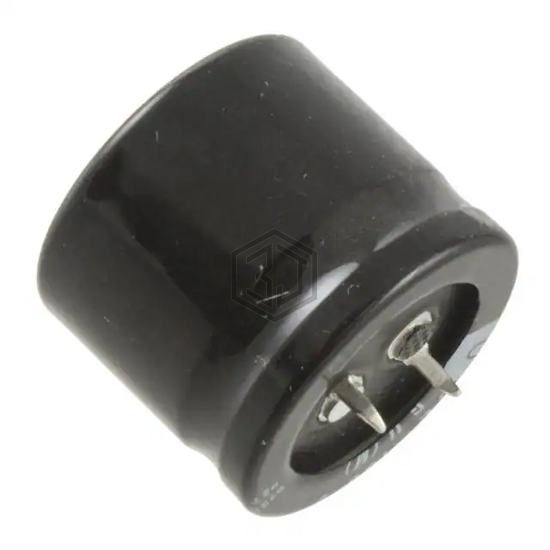

CAP ALUM 390UF 20% 250V SNAP
LGU2E391MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 5,442
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.49 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.235 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU2E391MELZ | Nichicon | CAP ALUM 390UF 20% 250V SNAP | 100% | View |
| EKXJ201ELL391ML45S | United Chemi-Con | CAP ALUM 390UF 20% 200V RADIAL | 81% | View |
| UCY2C391MHD9 | Nichicon | CAP ALUM 390UF 20% 160V RADIAL | 79% | View |
| B43504B9397M67 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 400V SNAP | 76% | View |
| EKZN101ELL391MK35S | United Chemi-Con | CAP ALUM 390UF 20% 100V RADIAL | 72% | View |
| B43254A1397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 160V SNAP | 72% | View |
