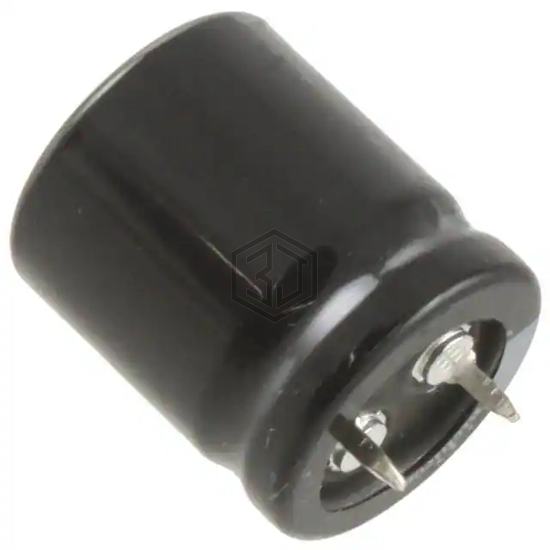

CAP ALUM 270UF 20% 250V SNAP
LGU2E271MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 9,732
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.18 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.77 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| THAS271M200AD1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 270UF 20% 200V FLATPACK | 90% | View |
| 381LX271M315A022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 270UF 20% 315V SNAP | 87% | View |
| B43504B9277M67 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 400V SNAP | 78% | View |
| EKZE101ELL271MK30S | United Chemi-Con | CAP ALUM 270UF 20% 100V RADIAL | 64% | View |
| 100ZL270MEFCGC18X20 | Rubycon | CAP ALUM 270UF 20% 100V RADIAL | 63% | View |
| 35ZL270MEFCT78X20 | Rubycon | CAP ALUM 270UF 20% 35V RADIAL | 55% | View |
Submit your RFQ for LGU2E271MELA and get a quote within 24 hours.
