CAP ALUM 680UF 20% 200V SNAP

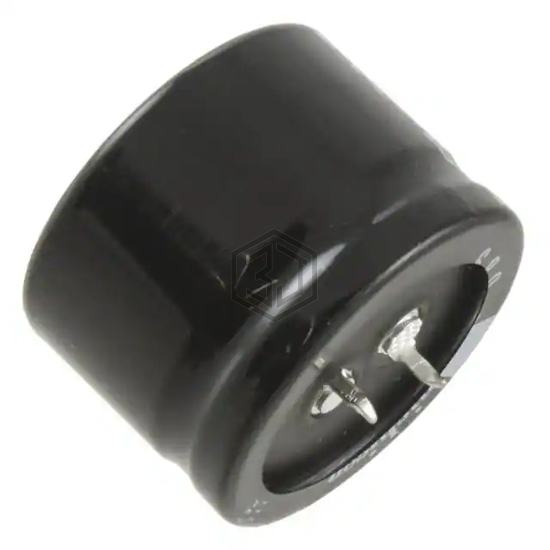

LGU2D681MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 1,952
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.78 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.67 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216342681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 200V SNAP | 95% | View |
| 381LQ681M315K452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 315V SNAP | 82% | View |
| UHW2A681MHD6 | Nichicon | CAP ALUM 680UF 20% 100V RADIAL | 76% | View |
| ESY687M050AL8AA | KEMET | CAP ALUM 680UF 20% 50V RADIAL TH | 73% | View |
| MAL224698683E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V RADIAL | 63% | View |
| EK1V681MP51316E | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 56% | View |
