CAP ALUM 1200UF 20% 200V SNAP

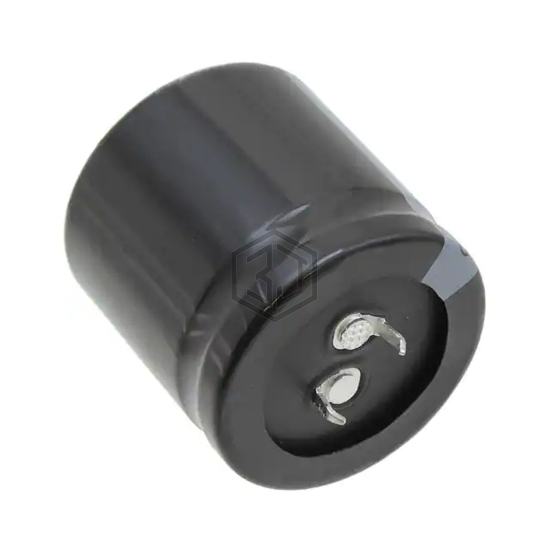

LGU2D122MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 4,992
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.65 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.975 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 160MXC1200MEFC30X35 | Rubycon | CAP ALUM 1200UF 20% 160V SNAP | 90% | View |
| LGG2C122MELA40 | Nichicon | CAP ALUM 1200UF 20% 160V SNAP | 86% | View |
| LGG2E122MELB45 | Nichicon | CAP ALUM 1200UF 20% 250V SNAP | 86% | View |
| LKX2E122MESC40 | Nichicon | CAP ALUM 1200UF 20% 250V SNAP | 86% | View |
| B43642F2128M000 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 250V SNAP | 84% | View |
| 35ZLJ1200M12.5X25 | Rubycon | CAP ALUM 1200UF 20% 35V RADIAL | 66% | View |
Submit your RFQ for LGU2D122MELC and get a quote within 24 hours.
