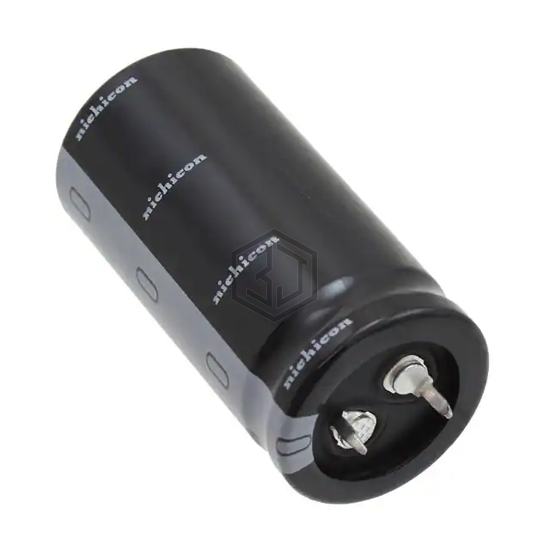

CAP ALUM 1000UF 20% 200V SNAP
LGU2D102MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 4,427
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.45 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LQ102M200J052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 200V SNAP | 98% | View |
| 200MXC1000MEFC25X45 | Rubycon | CAP ALUM 1000UF 20% 200V SNAP | 96% | View |
| LGG2P102MELA45 | Nichicon | CAP ALUM 1000UF 20% 220V SNAP | 94% | View |
| LGN2C102MELB25 | Nichicon | CAP ALUM 1000UF 20% 160V SNAP | 91% | View |
| EKZE500EC3102ML25S | United Chemi-Con | CAP ALUM 1000UF 20% 50V RADIAL | 70% | View |
| MAL215859102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 100V SNAP | 66% | View |
