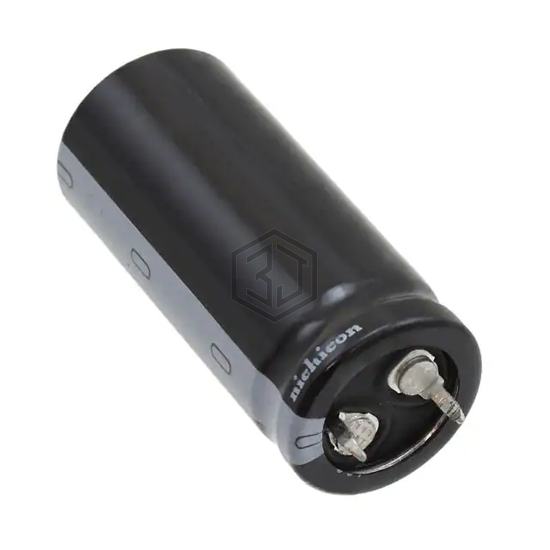

CAP ALUM 680UF 20% 160V SNAP
LGU2C681MELY is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 2,225
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.55 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LDQ2D681MERZGA | Nichicon | CAP ALUM 680UF 20% 200V RADIAL | 91% | View |
| B43508C2687M | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 200V SNAP | 86% | View |
| EKZE101ELL681ML40S | United Chemi-Con | CAP ALUM 680UF 20% 100V RADIAL | 76% | View |
| EGPD800ELL681ML25H | United Chemi-Con | CAP ALUM 680UF 20% 80V RADIAL | 75% | View |
| EKMZ451VSN681MR50S | United Chemi-Con | CAP ALUM 680UF 20% 450V SNAP | 67% | View |
| EKZN250ELL681MJ16S | United Chemi-Con | CAP ALUM 680UF 20% 25V RADIAL | 65% | View |
Submit your RFQ for LGU2C681MELY and get a quote within 24 hours.
