CAP ALUM 680UF 20% 160V SNAP

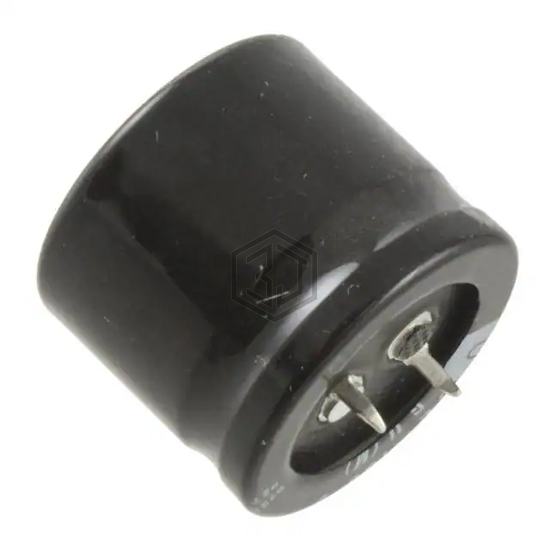

LGU2C681MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 4,785
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.82 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.73 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43252A1687M | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 160V SNAP | 99% | View |
| 381LX681M180J042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 180V SNAP | 92% | View |
| LGG2D681MELA30 | Nichicon | CAP ALUM 680UF 20% 200V SNAP | 87% | View |
| 381LR681M250K032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 250V SNAP | 74% | View |
| EKZM350ELL681MJ25S | United Chemi-Con | CAP ALUM 680UF 20% 35V RADIAL | 67% | View |
| B43504A9687M000 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 400V SNAP | 60% | View |
