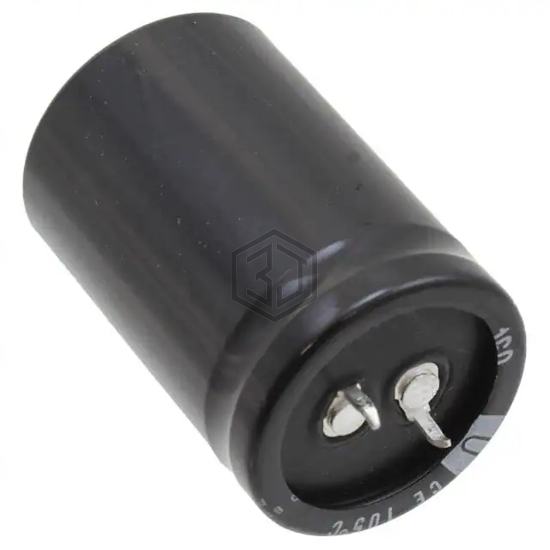

CAP ALUM 1800UF 20% 160V SNAP
LGU2C182MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 6,357
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.32 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.98 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGN2C182MELC35 | Nichicon | CAP ALUM 1800UF 20% 160V SNAP | 90% | View |
| B43508A2188M62 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 200V SNAP | 88% | View |
| 381LQ182M250A052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 20% 250V SNAP | 75% | View |
| B43504A2188M82 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 250V SNAP | 74% | View |
| EEU-FM1E182S | Panasonic Electronic Components | CAP ALUM 1800UF 20% 25V RADIAL | 64% | View |
| EEU-TP1V182S | Panasonic Electronic Components | CAP ALUM 1800UF 20% 35V RADIAL | 54% | View |
