CAP ALUM 1500UF 20% 160V SNAP

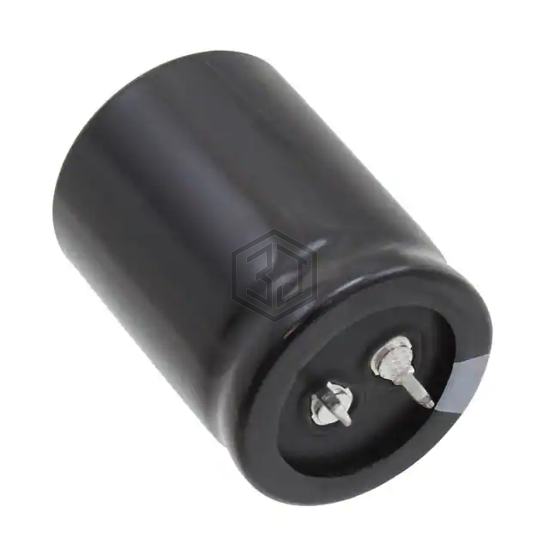

LGU2C152MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 7,199
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.84 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.26 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGN2D152MELC35 | Nichicon | CAP ALUM 1500UF 20% 200V SNAP | 93% | View |
| LGN2Z152MELB40 | Nichicon | CAP ALUM 1500UF 20% 180V SNAP | 90% | View |
| B43640C2158M067 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 200V SNAP | 82% | View |
| B41691A7158Q001 | EPCOS - TDK Electronics | CAP ALUM 1500UF 40V AXIAL | 59% | View |
| 678D158M010DK3D | Vishay Sprague | CAP ALUM 1500UF 20% 10V RADIAL | 56% | View |
| B41252B8158M | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 63V SNAP | 52% | View |
