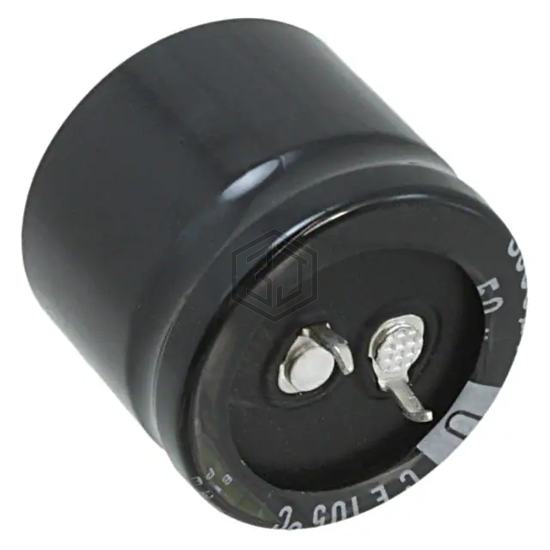

CAP ALUM 1200UF 20% 100V SNAP
LGU2A122MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 4,231
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.71 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.9665 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXZ630ELL122ML40S | United Chemi-Con | CAP ALUM 1200UF 20% 63V RADIAL | 77% | View |
| MALIEYH07LU412J02K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 63V SNAP | 74% | View |
| B41890B7128M | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 35V RADIAL | 64% | View |
| LGN2Z122MELB35 | Nichicon | CAP ALUM 1200UF 20% 180V SNAP | 62% | View |
| 10ZLH1200MEFC8X20 | Rubycon | CAP ALUM 1200UF 20% 10V RADIAL | 56% | View |
| EEU-FK1A122 | Panasonic Electronic Components | CAP ALUM 1200UF 20% 10V RAD TH | 55% | View |
Submit your RFQ for LGU2A122MELB and get a quote within 24 hours.
