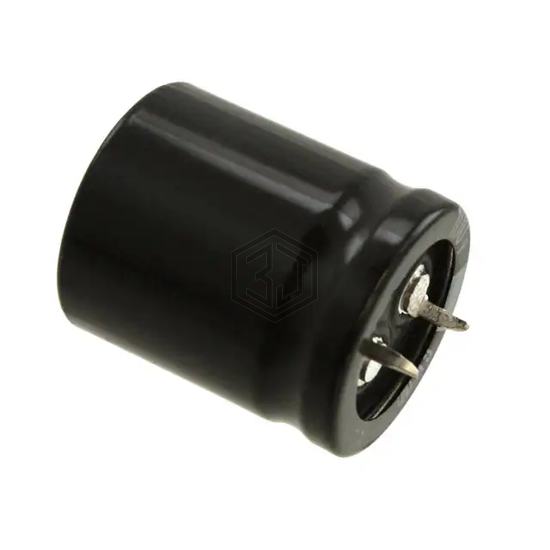

CAP ALUM 1200UF 20% 100V SNAP
LGU2A122MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 1,897
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.56 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.024 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU1K122MELZ | Nichicon | CAP ALUM 1200UF 20% 80V SNAP | 87% | View |
| 35YXG1200MEFC12.5X30 | Rubycon | CAP ALUM 1200UF 20% 35V RADIAL | 72% | View |
| 16ZLQ1200MEFC10X16 | Rubycon | CAP ALUM 1200UF 20% 16V RADIAL | 71% | View |
| MAL215061122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 50V RADIAL | 69% | View |
| EKY-500ELL122MLN3S | United Chemi-Con | CAP ALUM 1200UF 20% 50V RADIAL | 66% | View |
| B43508F2128M2 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 250V SNAP | 62% | View |
Submit your RFQ for LGU2A122MELA and get a quote within 24 hours.
