CAP ALUM 1000UF 20% 100V SNAP

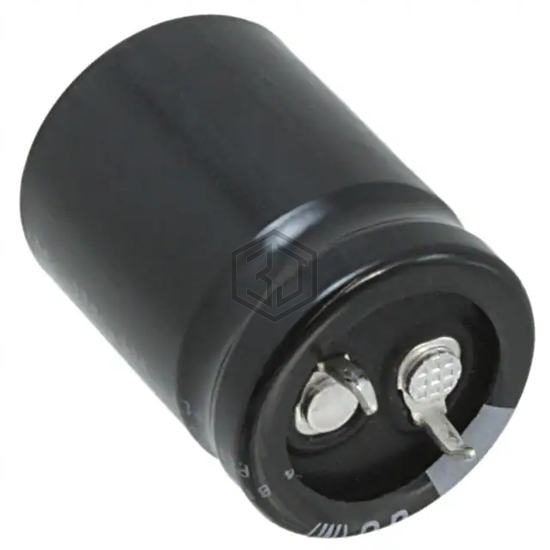

LGU2A102MELZ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 3,768
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.54 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.771 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL205879102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 100V SNAP | 95% | View |
| EGPA630ELL102ML35S | United Chemi-Con | CAP ALUM 1000UF 20% 63V RADIAL | 77% | View |
| ELXY250ETE102MK25S | United Chemi-Con | CAP ALUM 1000UF 20% 25V RADIAL | 68% | View |
| EKZM160ELL102MH20D | United Chemi-Con | CAP ALUM 1000UF 20% 16V RADIAL | 62% | View |
| B43640A2108M007 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 200V SNAP | 57% | View |
| MAL214250102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 35V RADIAL | 56% | View |
Submit your RFQ for LGU2A102MELZ and get a quote within 24 hours.
