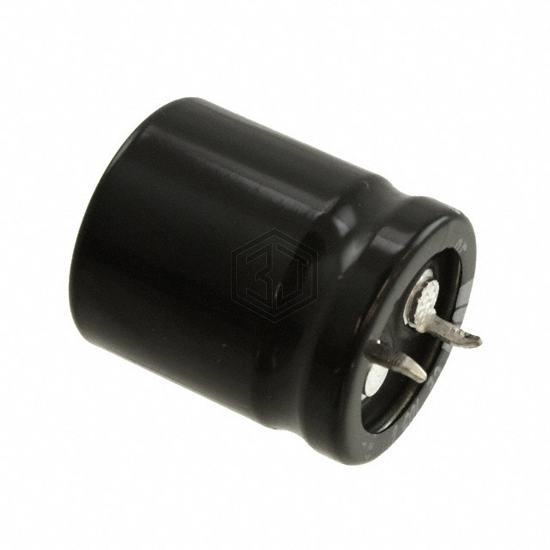

CAP ALUM 3300UF 20% 35V SNAP
LGU1V332MELZ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 3,763
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.45 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.6675 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LP332M025A1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 20% 25V SNAP | 78% | View |
| ECA-1CHG332B | Panasonic Electronic Components | CAP ALUM 3300UF 20% 16V RADIAL | 69% | View |
| 16RX303300M16X31.5 | Rubycon | CAP ALUM 3300UF 20% 16V RADIAL | 66% | View |
| B41505A8338M002 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 63V SNAP | 61% | View |
| MAL204864332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 10V RADIAL | 59% | View |
| MAL217250332E3 | Vishay Beyschlag/Draloric/BC Components | 3300UF 35V 18X31MM 105C 10000H | 58% | View |
Submit your RFQ for LGU1V332MELZ and get a quote within 24 hours.
