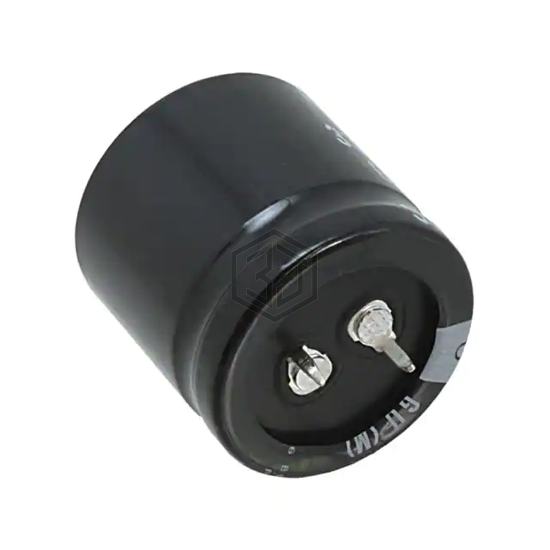

CAP ALUM 2700UF 20% 80V SNAP
LGU1K272MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2700UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 1,443
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.43 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.7945 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215868272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 63V SNAP | 80% | View |
| UPA1E272MHD | Nichicon | CAP ALUM 2700UF 20% 25V RADIAL | 77% | View |
| ELXY350EC5272ML40S | United Chemi-Con | CAP ALUM 2700UF 20% 35V RADIAL | 75% | View |
| KY10VB272M18X15LL | United Chemi-Con | CAP ALUM 2700UF 20% 10V RADIAL | 64% | View |
| B41605E8278M2 | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 63V SNAP | 60% | View |
| EEU-FK1A272 | Panasonic Electronic Components | CAP ALUM 2700UF 20% 10V RAD TH | 58% | View |
