CAP ALUM 2200UF 20% 80V SNAP

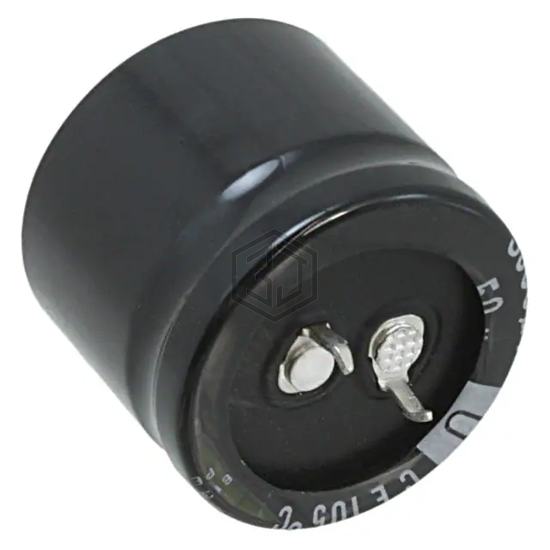

LGU1K222MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 7,196
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.415 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKYC350ELL222ML20S | United Chemi-Con | CAP ALUM 2200UF 20% 35V RADIAL | 75% | View |
| 511D228M035FR4D | Vishay Sprague | CAP ALUM 2200UF 20% 35V RADIAL | 74% | View |
| 228CKE050MQW | Cornell Dubilier / Illinois Capacitor | CAP ALUM 2200UF 20% 50V RADIAL | 71% | View |
| B41505A6228M002 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 50V SNAP | 67% | View |
| MAL212016222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 25V AXIAL | 61% | View |
| 10ZLH2200MEFC10X20 | Rubycon | CAP ALUM 2200UF 20% 10V RADIAL | 56% | View |
