CAP ALUM 1500UF 20% 80V SNAP

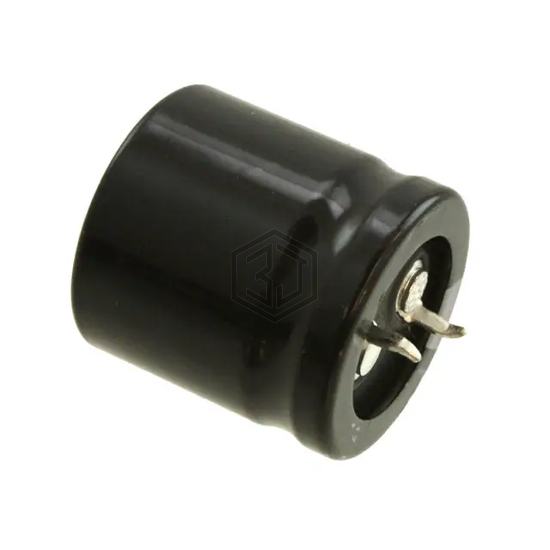

LGU1K152MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 3,497
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.62 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.863 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41252B158M | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 80V SNAP | 100% | View |
| MAL225061152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 50V RADIAL | 81% | View |
| EEU-FK1C152L | Panasonic Electronic Components | CAP ALUM 1500UF 20% 16V RAD TH | 72% | View |
| 16YXG1500MEFC12.5X20 | Rubycon | CAP ALUM 1500UF 20% 16V RADIAL | 70% | View |
| MAL211817152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 40V AXIAL | 70% | View |
| EEU-FR1A152L | Panasonic Electronic Components | CAP ALUM 1500UF 20% 10V RADIAL | 68% | View |
Submit your RFQ for LGU1K152MELA and get a quote within 24 hours.
