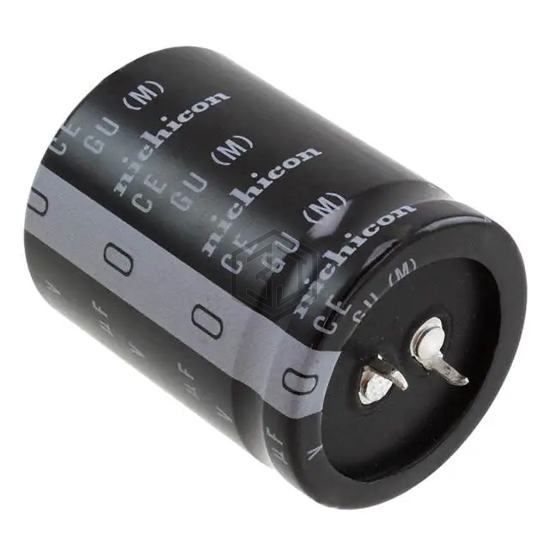

CAP ALUM 8200UF 20% 63V SNAP
LGU1J822MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 8200UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 7,782
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.16 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.784 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX822M050K452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 50V SNAP | 86% | View |
| B41896C3828M | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 10V RADIAL | 64% | View |
| MAL215055822E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 8200UF 20% 16V RADIAL | 57% | View |
| LP822M016E1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 16V SNAP | 56% | View |
| EKYB6R3ELL822MM20S | United Chemi-Con | CAP ALUM 8200UF 20% 6.3V RADIAL | 56% | View |
| 25MXG8200MEFCSN22X30 | Rubycon | CAP ALUM 8200UF 20% 25V SNAP | 51% | View |
Submit your RFQ for LGU1J822MELC and get a quote within 24 hours.
