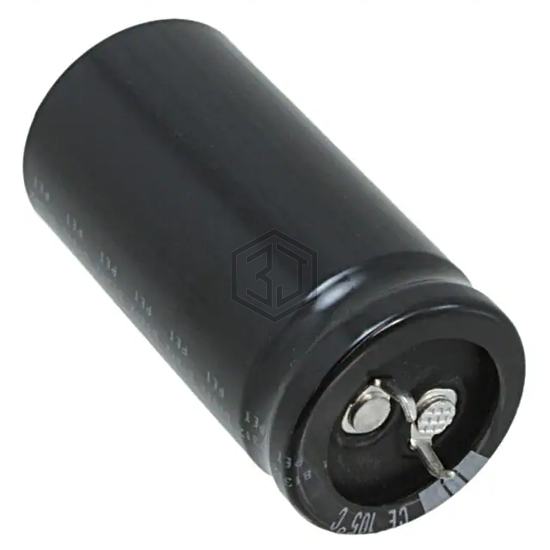

CAP ALUM 4700UF 20% 63V SNAP
LGU1J472MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 2,318
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.97 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.4155 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
LGU1J472MELA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH800VSN472MR50S | United Chemi-Con | CAP ALUM 4700UF 20% 80V SNAP | 85% | View |
| 100MXC4700MEFC35X45 | Rubycon | CAP ALUM 4700UF 20% 100V SNAP | 74% | View |
| EKYC160ELL472MK25S | United Chemi-Con | CAP ALUM 4700UF 20% 16V RADIAL | 69% | View |
| MAL212046472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V T/H | 63% | View |
| UPA1A472MHD6TN | Nichicon | CAP ALUM 4700UF 20% 10V RADIAL | 60% | View |
| VHT4700M10 | NTE Electronics, Inc | CAP ALUM 4700UF 20% 10V RADIAL | 56% | View |
Submit your RFQ for LGU1J472MELA and get a quote within 24 hours.
